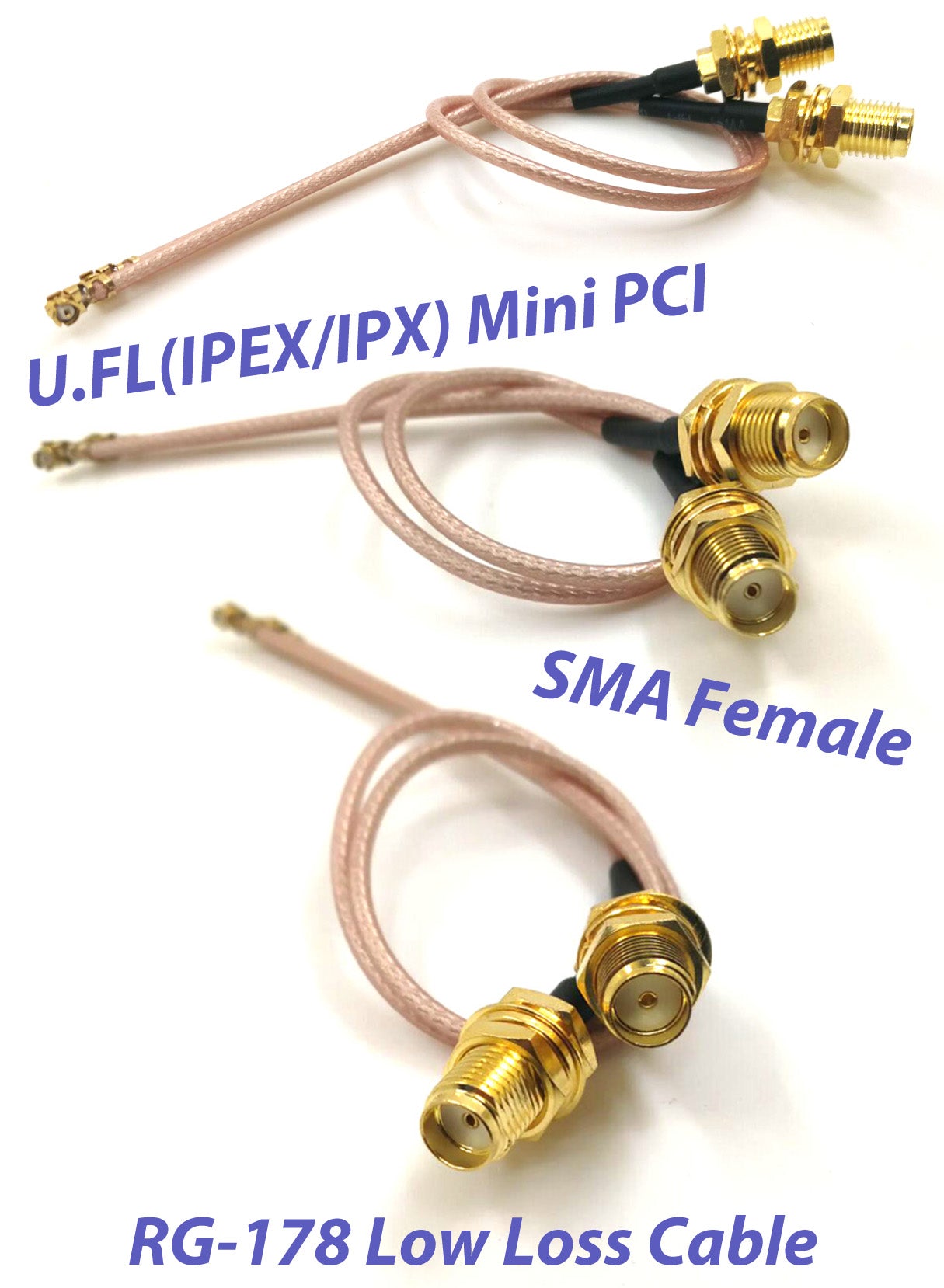

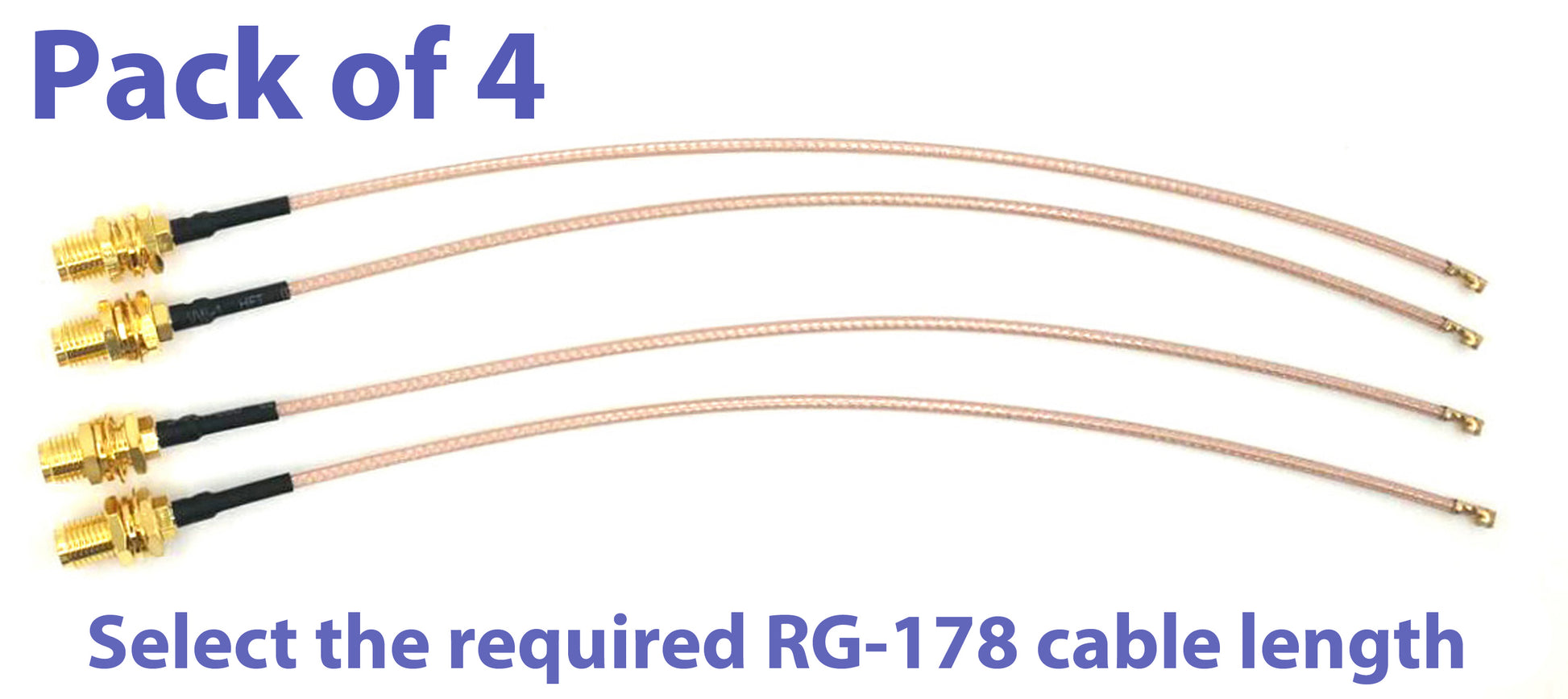

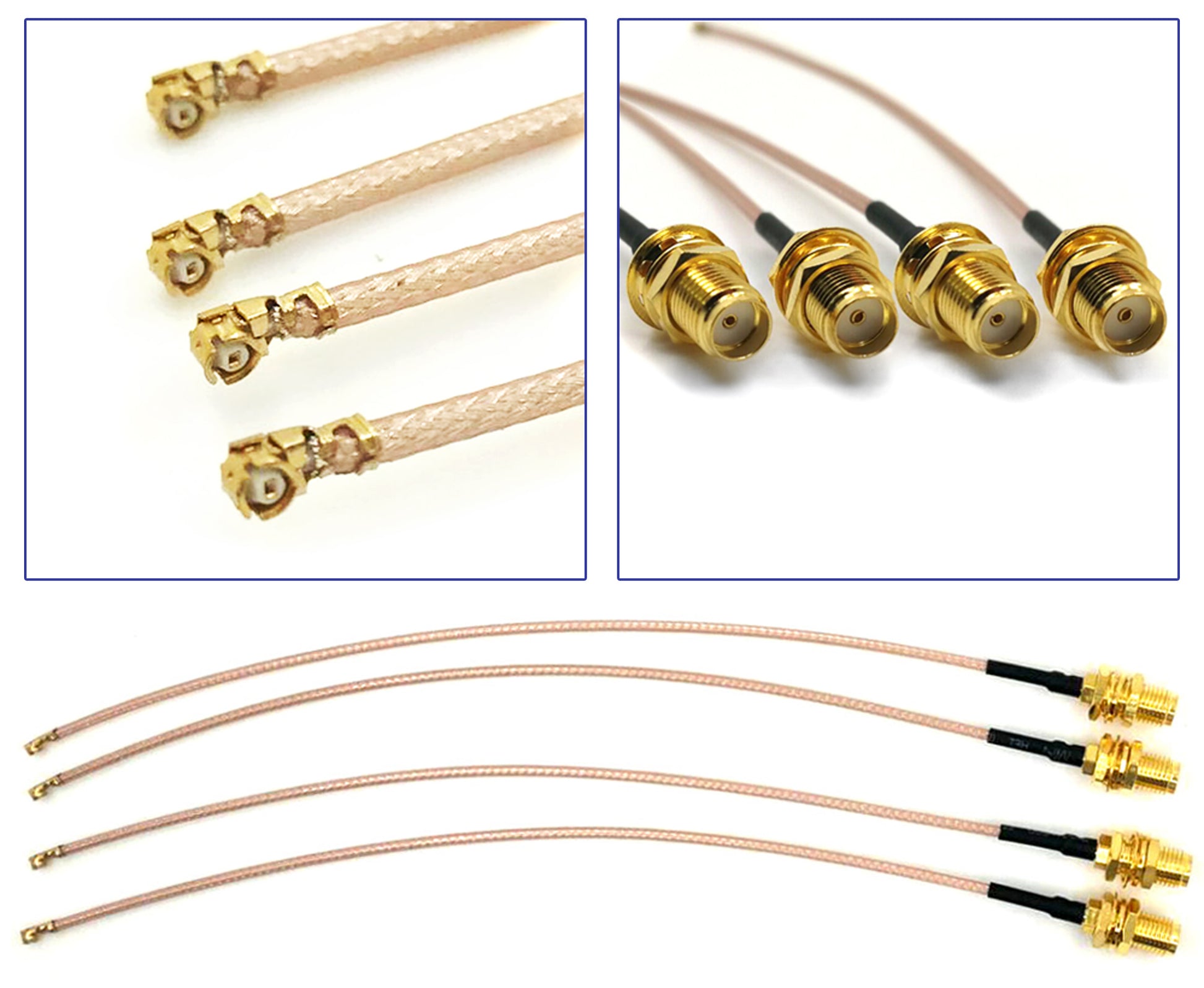

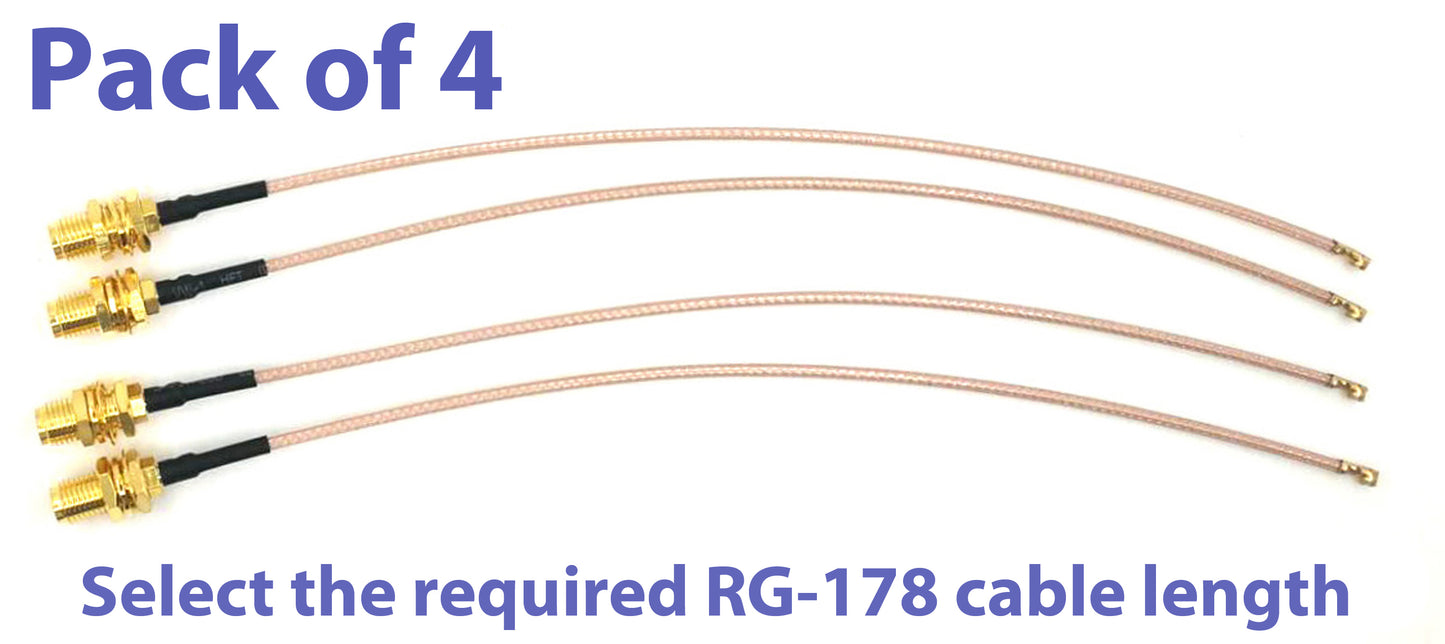

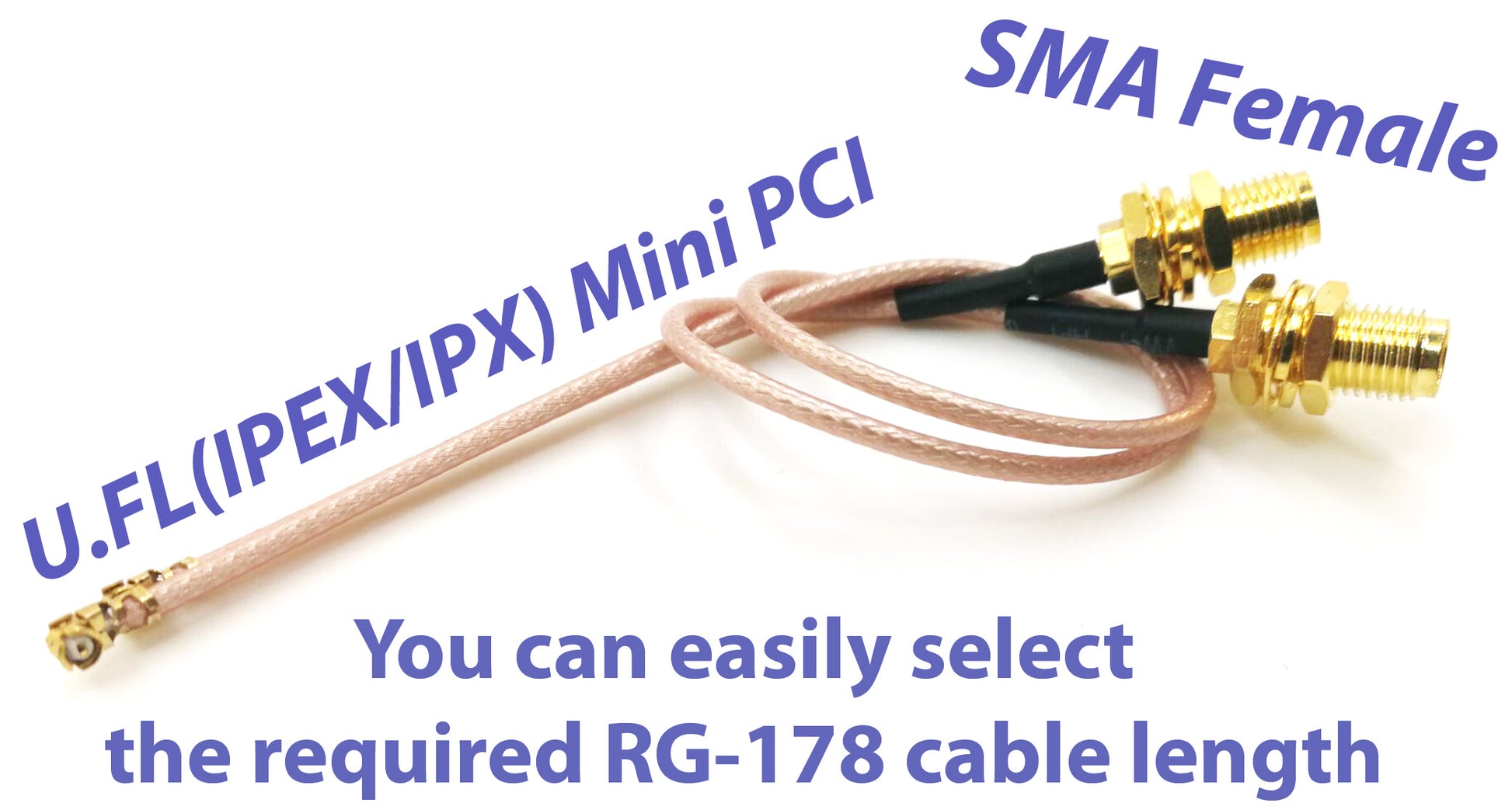

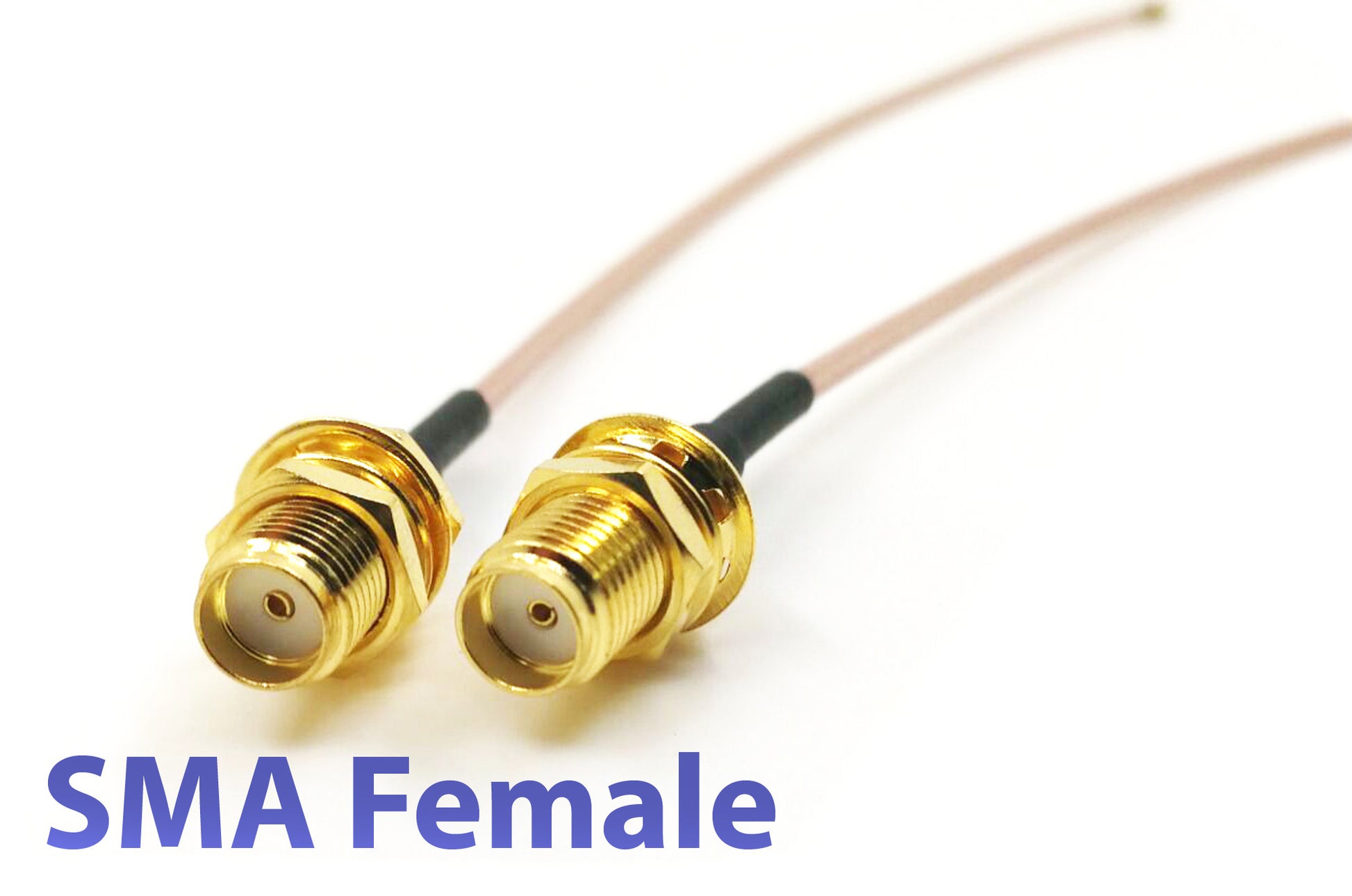

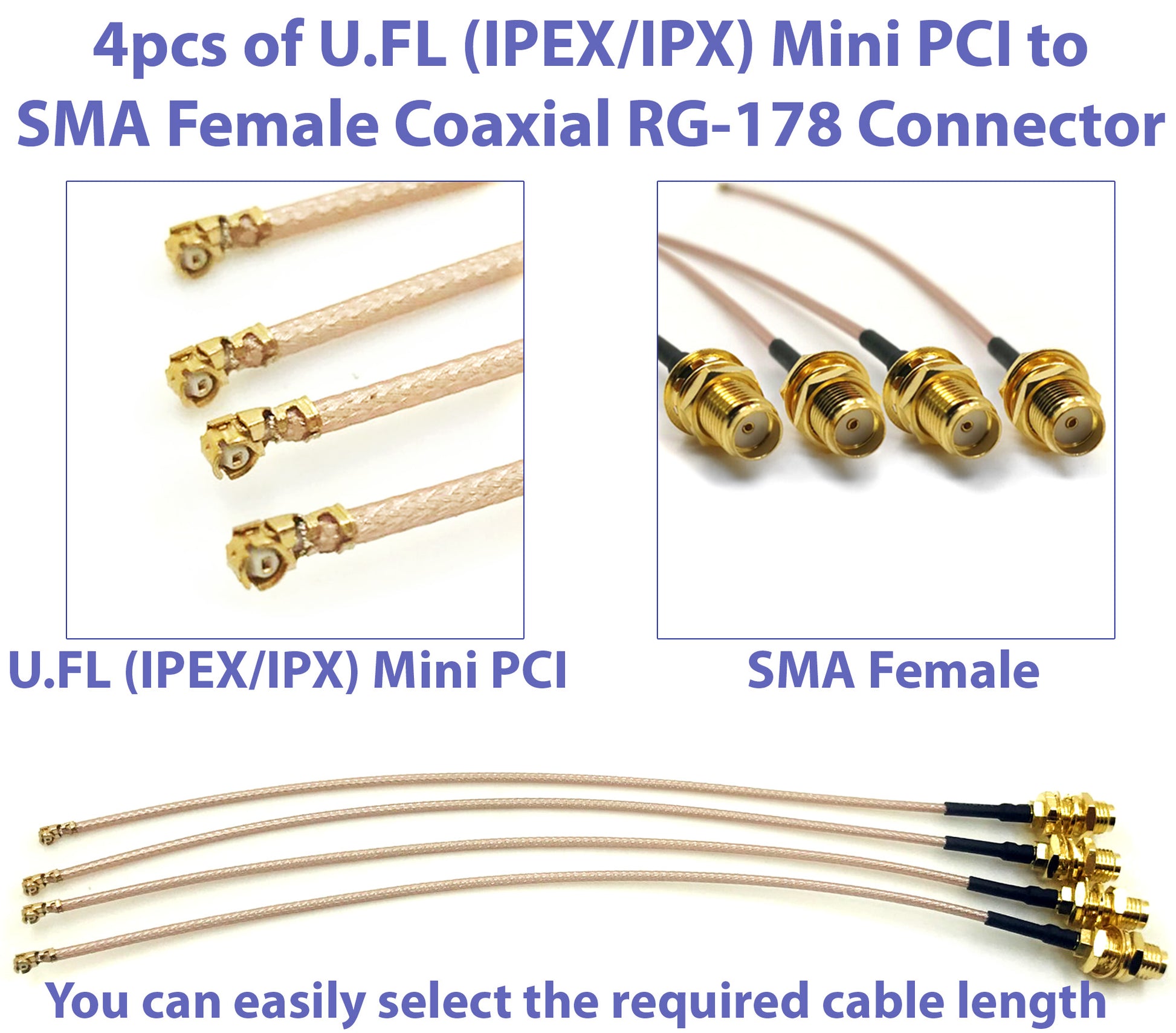

Pack of 4 RF U.FL(IPEX/IPX) Mini PCI to SMA Female Pigtail Antenna Wi-Fi Coaxial RG-178 Low Loss Cable

Pack of 4 RF U.FL(IPEX/IPX) Mini PCI to SMA Female Pigtail Antenna Wi-Fi Coaxial RG-178 Low Loss Cable

Regular price $15.39 USD
Regular price Sale price $15.39 USD
Sale Sold out
Tax included. Shipping calculated at checkout.
Length

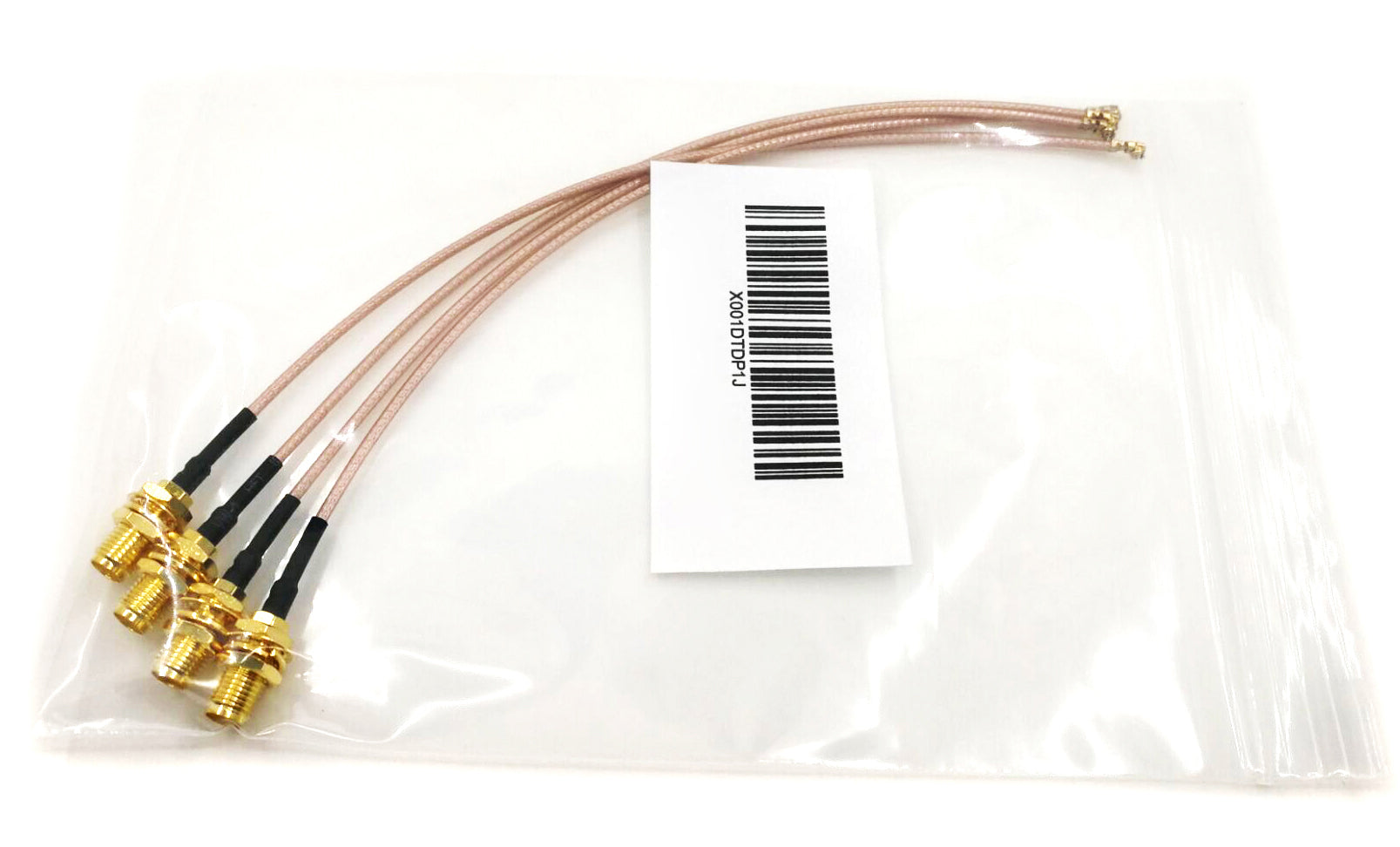

4pcs of U.FL Mini PCI to SMA Female Pigtail Coaxial low loss RG-178 cable. <br> To maximize signal power, ensure the highest quality of all types of connected frequency equipment, and also eliminate the attenuation of signal power in a cable of this length, we have specially used high-quality copper RG-178 low loss cable.<br> IPEX (IPX) MHF Connector is equivalent of Hirose U.FL connector. IPEX MHF is the generation one of IPEX micro RF coaxial connector. MHF connector is designed to have 2.5mm mating height and can operate 0~6GHz frequency. <br><br> PRODUCT FEATURES: <br> - Product name : U.FL Mini PCI to SMA Female Pigtail Coaxial low loss RG-178 cable <br> - Connectors : U.FL Mini PCI to SMA Female; <br> - Cable type :coaxial low loss RG-178 cable; <br> - Impedance : 50 Ω; <br> - Operating temperature : -40°С ~ +85°С. <br><br> PACKAGE INCLUDES: 4 x U.FL Mini PCI to SMA Female Pigtail Coaxial low loss RG-178 cable
